Limiting Oxygen Index Test Apparatus Electronic

Name: Limiting Oxygen Index Test Apparatus Electronic
Brand: BOTO
Price: 1 USD

Quality Limiting Oxygen Index Test Apparatus Electronic for sale

Brand Name : BOTO

Model Number : BT-YYF031

Certification : CE ISO

Place of Origin : China

MOQ : 1set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100 Set/Sets per Month

Delivery Time : 5-25 days

Packaging Details : wooden case

Power : Electronic

Usage : Temperature And Humidity Test

Humidity range : 20%~98%

Product name : temperature humidity incubator

Warranty : 12 Months

Application : Instrument and other industry

Contact Now

Limiting Oxygen Index Test Apparatus Electronic

Product Description

Specification

Item Name	Fully Automatic ASTM D2863 Building Material Limiting Oxygen Index Tester
Oxygen concentration measurement range	0-100%
Resolution	0.1%
Accuracy	+/-0.2%
Response time	<300ms
Oxygen stability time	<30s
Oxygen concentration sensor	England Servomex Paramagnetic type oxygen sensor, accuracy: +/-0.1%
Gas displacement	50L/S
Size	600(W)310(D)545(H)mm
Workbench size	1500(W)600(D)800(H)mm
Weight	30kg
Power supply	AC 220V, 50/60Hz, 5A

Features:

Adopts England original Servomex Paramagnetic type oxygen sensor, which accuracy can be up to +/-0.1%;
The sensor is better than traditional electrochemical sensor, because it don't need to change oxygen battery, so, it has long lift time more accurate and faster response time.
Equipped with 2pcs Mass Flow Controller(MFC) to control N2 and O2 mixing ratio;

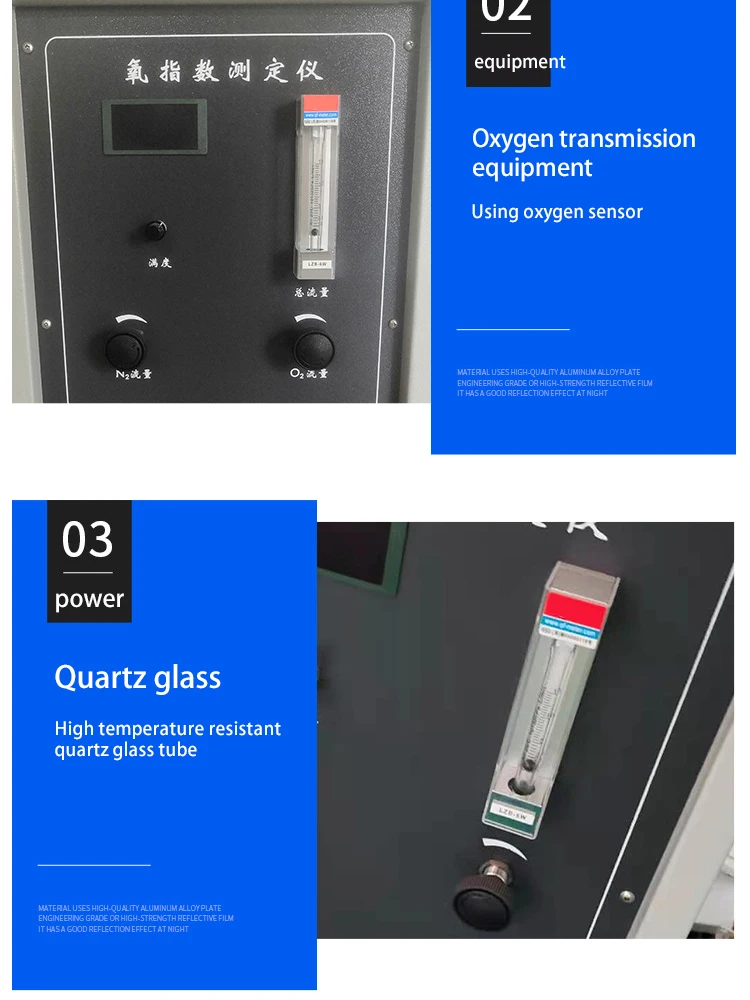

Equipped with high temperature quartz glass tank;
Equipped with supported and unsupported sample clamps;
Equipped with portable ignition device, gas tank connector, accurate pin valve to adjust the flame;
Digital setting N2 and O2 concentration;
Computer+LABVIEW software to control N2 and O2 mixing ratio, read O2 concentration in mixing chamber, and store&print out test results;
Reserve a calibration port to calibrate the sensor;
Stainless steel air channel design, equipped with one way fire-resistance valve, magnetic valve, fine filter, so, it is stable
 and safe;
Patented design gas mixing chamber, which ensure the gases can mix the gases in short time, data is more accurate;
