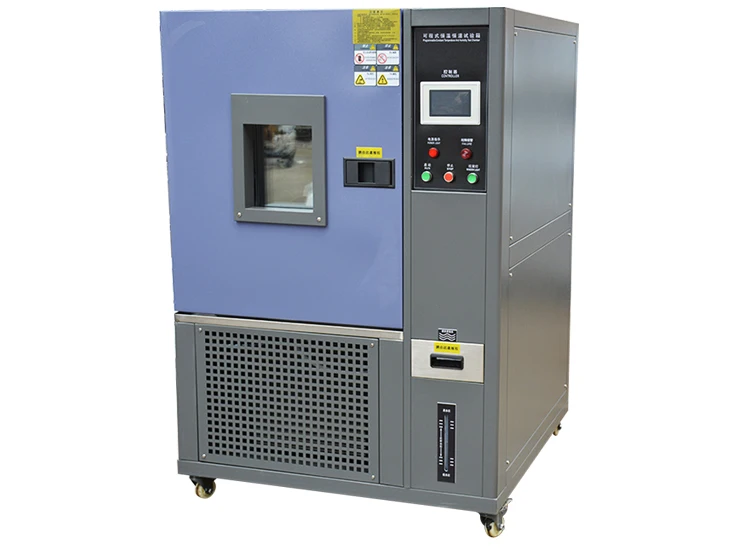

Name: State Of The Art Environmental Test Chambers For Temperature And Humidity Testing
Brand: BOTO
Price: 1 USD

Brand Name : BOTO

Model Number : BT-YYE009

Certification : CE ISO

Place of Origin : China

MOQ : 1set

Payment Terms : L/C, T/T

Supply Ability : 100 Set/Sets per Month

Delivery Time : 5-25 days

Packaging Details : wooden case

Inner size : 500MM*600MM*500MM (W* H* D)

Temperature range : -20℃~+150℃,adjustable

Temperature uniformity : ≤±0.5 ℃

Humidity degree : 10% - 98% R.H

Power : Electronic

Outer size : 1130MM*1750MM*1220MM (W* H* D)

Temperature fluctuation degree : ≤±1.0 ℃

Temperature resolution accuracy : ±0 .01℃

Humidity fluctuations degree : ±2.0%R.H

Contact Now

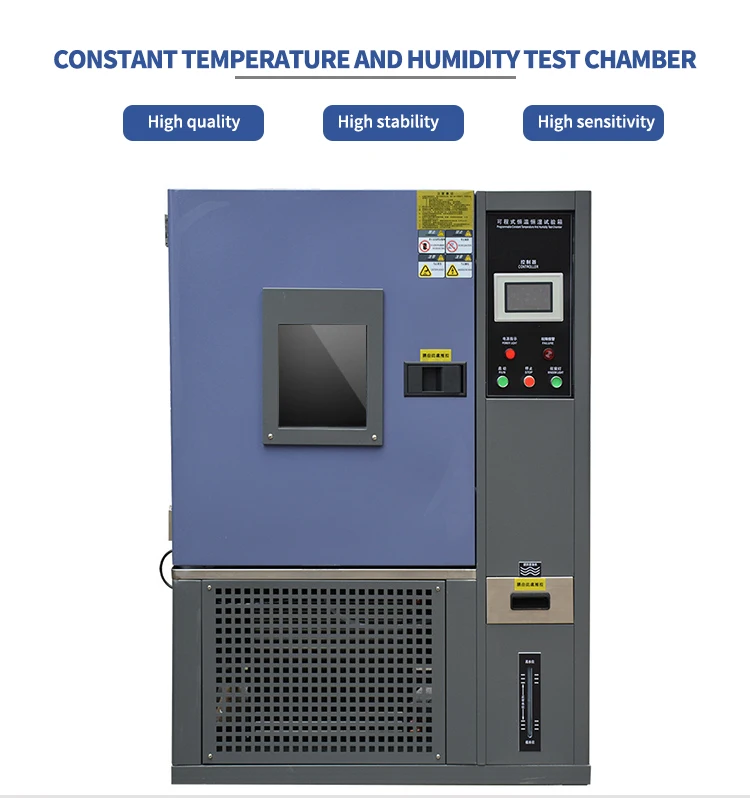

Constant Temperature and Humidity Test Chamber

Cabinet material	Studio	#304 mirror stainless steel (1.2mm)
	Outer box	Electrostatic spraying of cold rolled steel plate (1.5mm)
	Keep warm	Polyurethane + glass fiber (110mm below -50°C)
Control	German original temperature control instrument (optional with photo), Simple operation, convenient setting, control accuracy0.01℃,
Heater	Fin type stainless steel heating system
Evaporator	Heat exchanger
Note	Customizable

Product Description

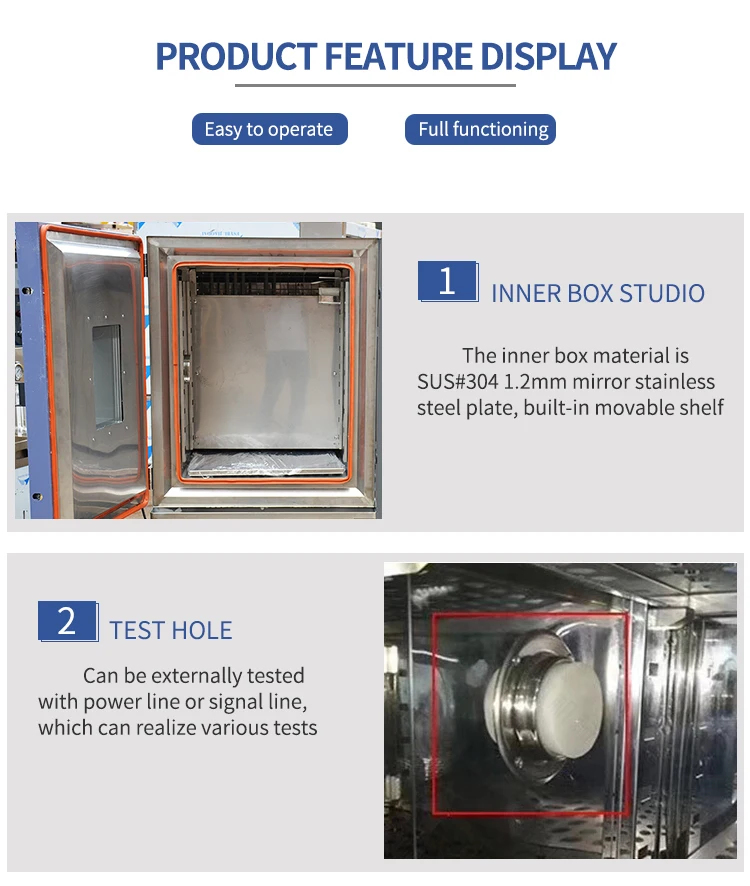

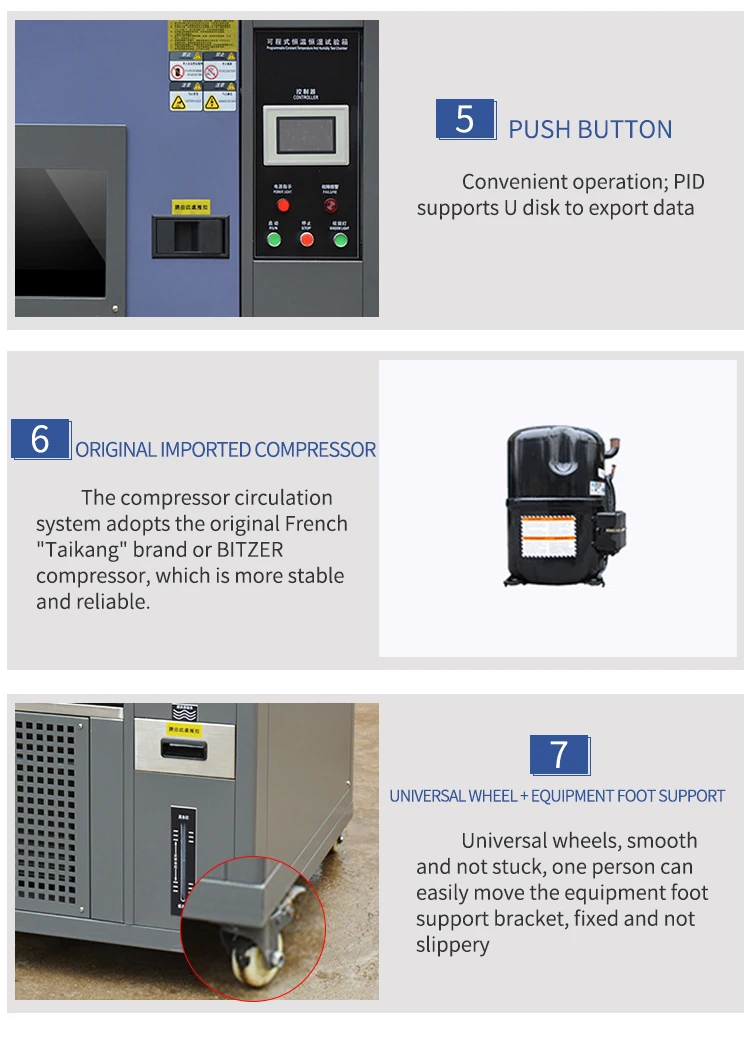

Product feature display

Part of the application industry

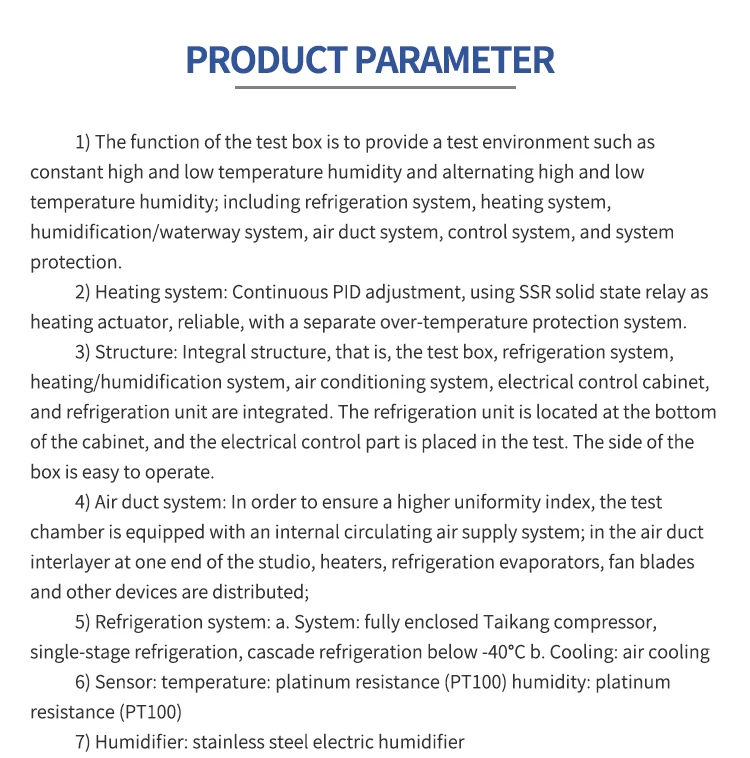

Product Paramenters

Serial number	Volume	Inner size DWH	Temperature range	Humidity range	Power 50hz/total rate (to be determined)
01	80L	400x400x 500	00~150°C 20~150°C -40~150°C - 50~150°C -60~150°C - 70~ 150°C Selected according to test requirements	30~ 98%	220V/5 KW
02	100L	400x500x 500			220V/6KW
03	150L	500x500x 600			220V/6.5KW
04	225L	600x 500x750			220V/7KW
05	408L	800x 600x850			220V/7.5KW
06	800L	1000x800x1000			220V/7.5KW
07	1000L	1000x1000x1000			220V/8KW
Main indicators	a Temperature fluctuation: ≤±0.5°C, temperature uniformity: ≤+2°C b Humidity error: ≤+2%/-3%R.H c Cooling rate: 0.7~1°C/min, heating rate: 2~3°C/min d Temperature change test chamber: cooling 3~5°C/min, heating 3~5/min e Noise (dB)≤65 (all above are no-load)

Packaging & Transportation

State Of The Art Environmental Test Chambers For Temperature And Humidity Testing
